PRO SIMRIG PSR3 Fanatec DD Edition

PRO SIMRIG PSR3 Fanatec DD Edition

Find a dealer

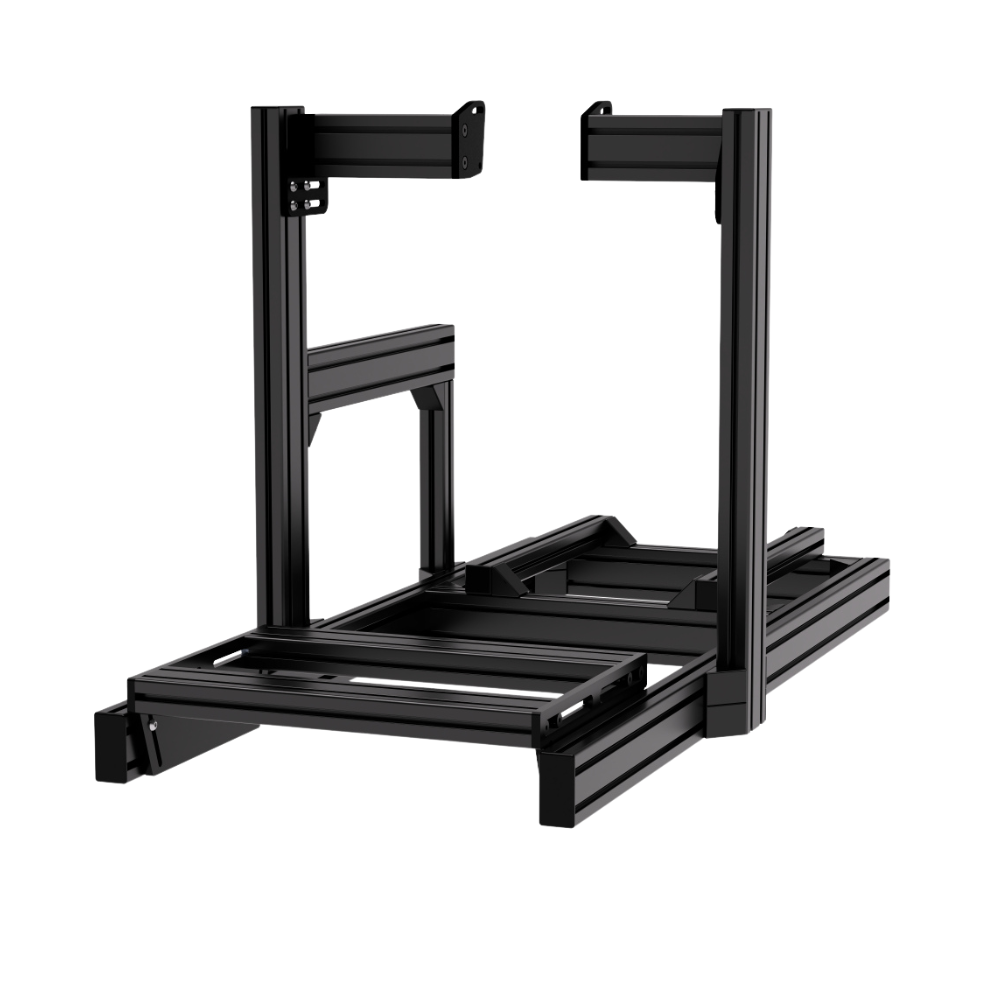

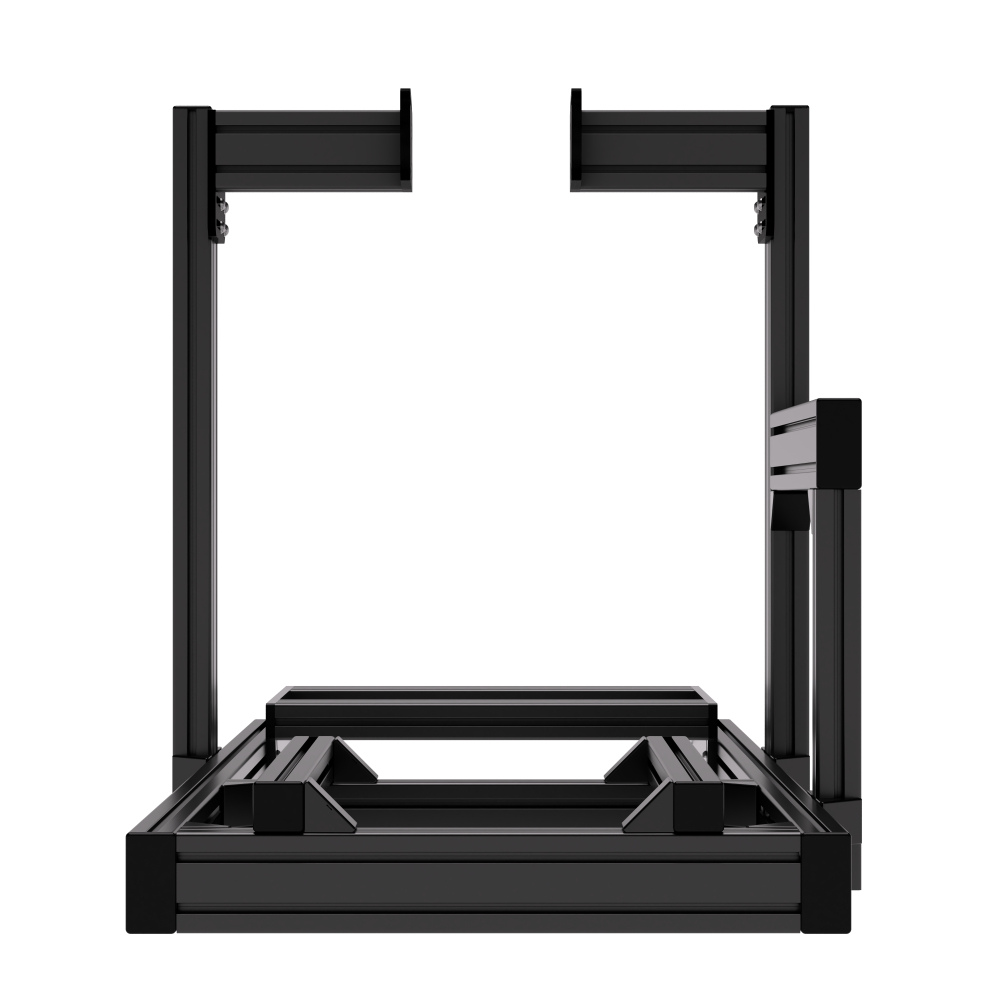

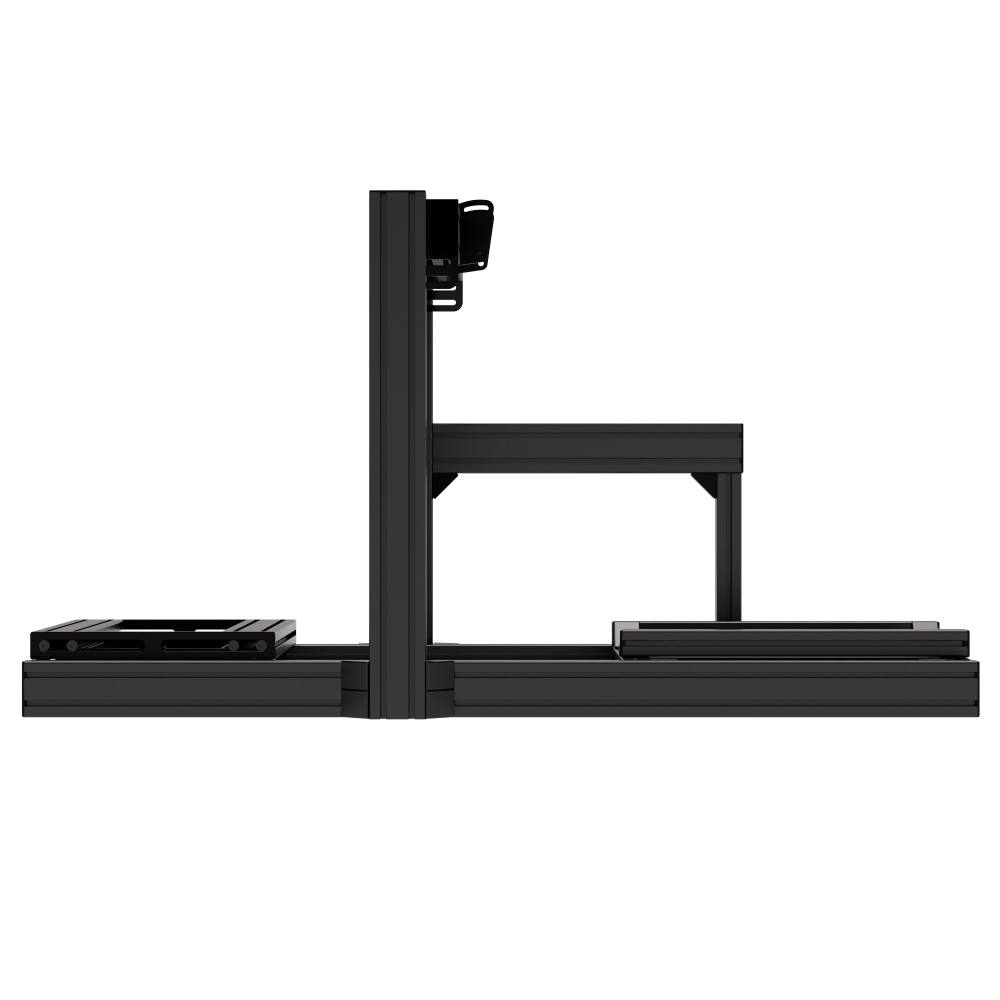

The PRO SIMRIG PSR3 Fanatec DD Edition is a precision-engineered sim racing cockpit featuring a bespoke side-mounting system for Fanatec direct drive wheelbases. Its robust aluminium profile construction delivers exceptional stability and adjustability, while the clean mounting design creates a more refined, integrated setup.

Compatible With

Wheelbase Compatibility

The PSR3 Fanatec DD Edition features a bespoke side-mounting system designed specifically for modern Fanatec direct drive wheelbases. This creates a secure, rigid connection while giving the cockpit a cleaner and more integrated appearance.

Compatible Fanatec wheelbases include:

  • Fanatec CSL DD, with or without the optional Boost Kit
  • Fanatec Gran Turismo DD Pro
  • Fanatec ClubSport DD
  • Fanatec ClubSport DD+
  • Fanatec Podium DD

When running a Fanatec Podium DD above 18Nm, we recommend upgrading to the PRO SIMRIG PSR1 for additional rigidity.

Pedal Compatibility

The PSR3 Fanatec DD Edition features a rigid and highly adjustable pedal deck, providing wide compatibility across popular entry-level and premium pedal systems.

Compatible pedal systems using the manufacturer’s baseplate include:

  • SIMAGIC P500, P700, P1000, P1000i and P2000
  • Fanatec CSL Elite V2, CSL, CSL with Load Cell, V1, V2 and V3
  • Heusinkveld Sprint, Ultimate and Ultimate+
  • Meca CUP1 and EVO1
  • BJ Steel
  • Asetek Forte and Invicta
  • MOZA SR-P and CRP
  • SimTrecs ProPedal GT
  • Sim Coaches P1
  • SimCraft PRO
  • ImSim Talento

The following pedals mount from underneath and require an additional mounting kit:

  • Thrustmaster T-LCM, T3PA and T3PM
  • Logitech pedal sets
  • Fanatec CSR and CSR Elite

The additional mounting kit uses four corner brackets, eight T-slot nuts and eight bolts, and is available separately.

What's included

  • Aluminium profiles
  • Bolts including seat / seat slider / seat bracket bolts
  • Pedal section
  • Wheel deck
  • Side mount

Please note: Some photos may show additional accessories, such as Adjustable Rig Feet, Floor Mat, Seat Brackets, Seat, Monitors, Monitor Stands, PC Stand, Pedals, and others. These are not included and require a separate purchase.

Specifications

  • Weight: 36kg (2 boxes)
  • Easy to modify and add attachments
  • Profile: PRO SIMRIG Ultra Heavy Duty 40x80 and 40x40
  • Colour: Black profile, Black Angle Brackets, Black Angle Bracket Covers, Black and Silver bolts
View full details

Engineered Differently

Never over-engineered. Every component exists for a reason.

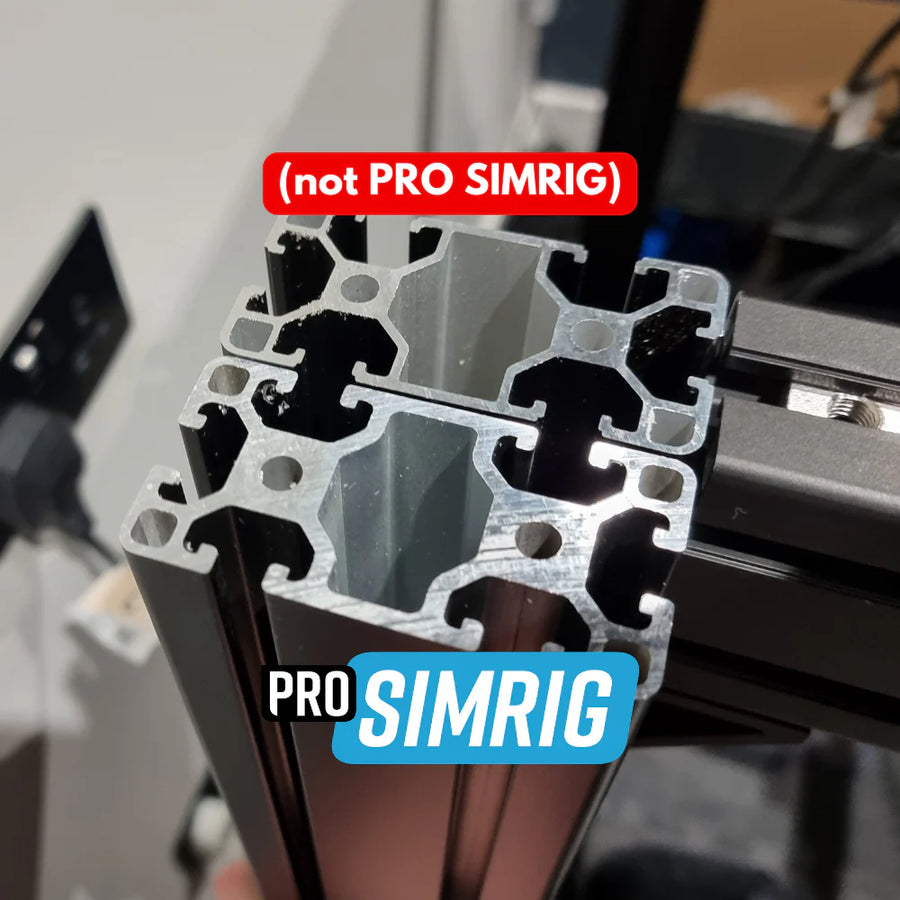

Ultra Heavy Duty Profile

Built using PRO SIMRIG ultra heavy-duty aluminium profiles with thicker side walls than standard extrusion, increasing mass and structural rigidity throughout the chassis.

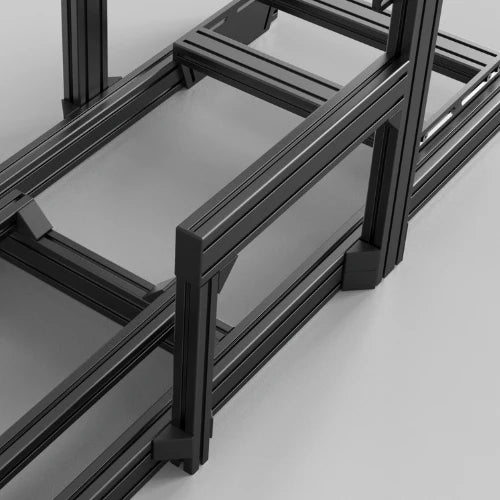

Overlapping Uprights

The steering uprights use an overlapping design that anchors the wheel mount directly into the rig perimeter, reducing flex under load and improving steering feedback.

Solid Wheel Section

The wheel section uses the same extremely rigid design of the PSR1. It uses a 10mm thick aluminium wheel deck, mated to profile and adjustable side plates.

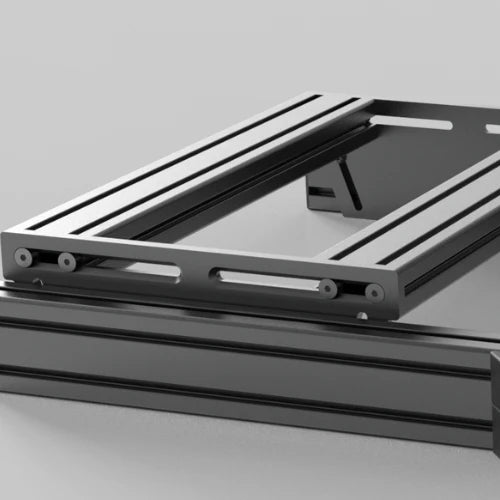

Extra Rigid Pedal Section

PSR3 has a great pedal section. It's design is an evolution of the PSR1, where two 10mm aluminium plates sandwich two 80mm profiles, mounted with 8 direct fixings. Many drivers prefer a very stiff brake setup, and so the PSR3 had to be built with that in mind.

Compatibility & Mounting

Designed around a modular aluminium profile system, the PSR3 - Fanatec DD Edition offers flexible mounting options for a wide range of wheelbases and pedals while maintaining structural rigidity.

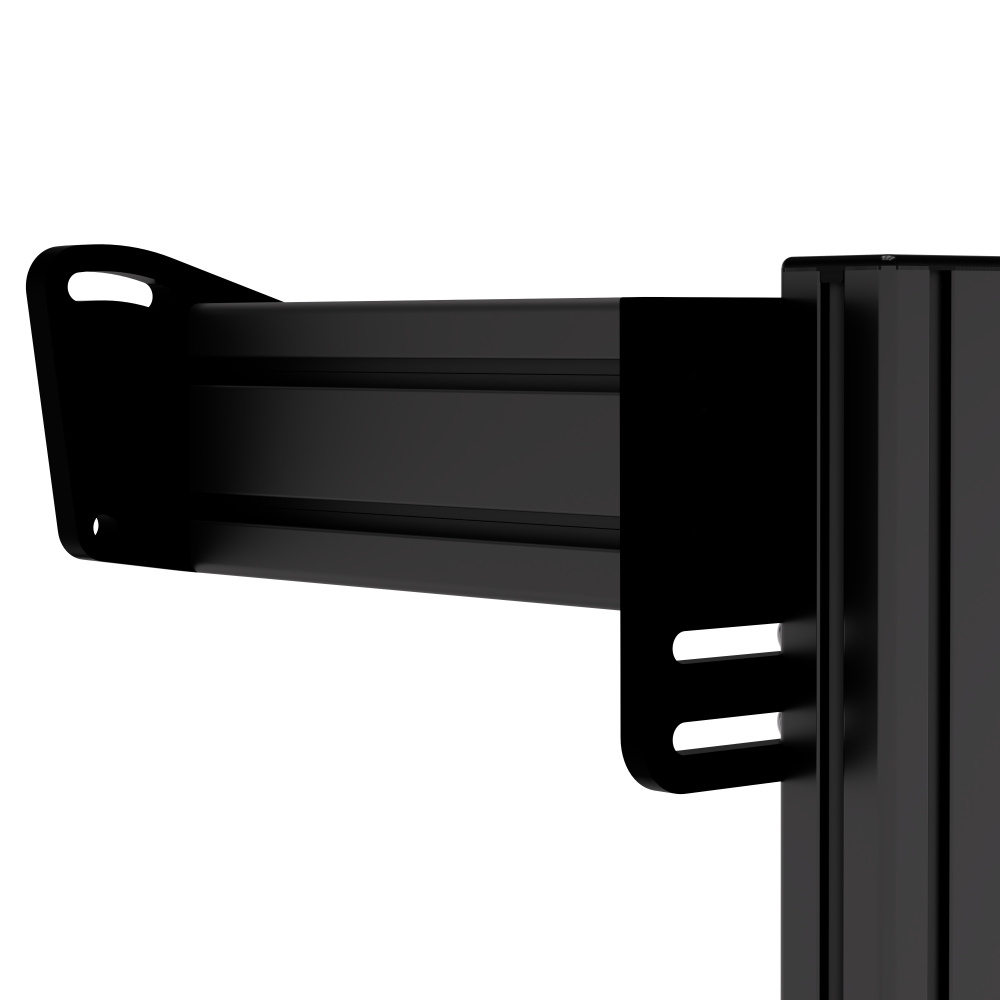

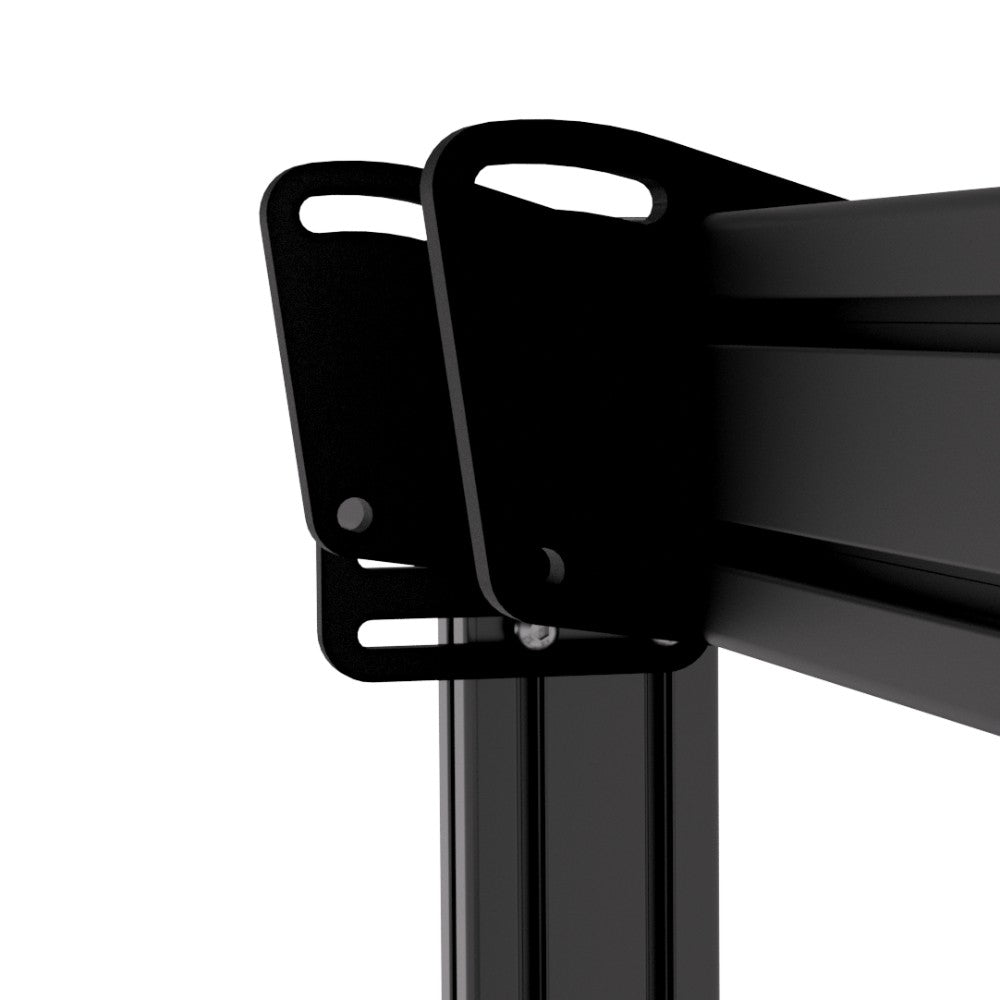

Bespoke Fanatec DD mounting

Purpose-built side-mounting system designed for compatible Fanatec DD wheelbases, creating a cleaner installation while maintaining excellent strength and stability under load.

Wide pedal compatibility

Reinforced, adjustable pedal deck supports a broad range of entry-level and high-end pedal systems using the manufacturer’s baseplate, providing a secure and stable platform under braking.

Modular accessory mounting

Standard T-slot aluminium profiles allow compatible mounts and accessories to be positioned, adjusted and expanded to suit your setup.

What our customers say

Real reviews from real customers

Absolutely love my new sim rig! The quality is outstanding and it's incredibly comfortable for long racing sessions.

M
Michael Johnson
Verified buyer

Best investment I've made for my racing setup. The build quality is exceptional and setup was straightforward.

S
Sarah Williams
Verified buyer

The attention to detail is impressive. Every component feels premium and the whole rig is rock solid.

D
David Martinez
Verified buyer

Fantastic product! The stability and adjustability make it perfect for serious sim racing.

E
Emma Thompson
Verified buyer

Exceeded my expectations in every way. The customer service was also excellent throughout the process.

J
James Anderson
Verified buyer

Worth every penny. The immersion level has gone through the roof since I got this rig.

L
Lisa Chen
Verified buyer

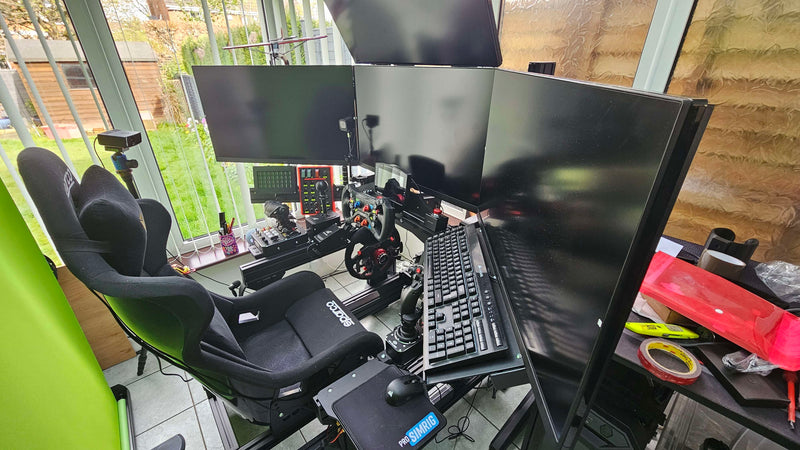

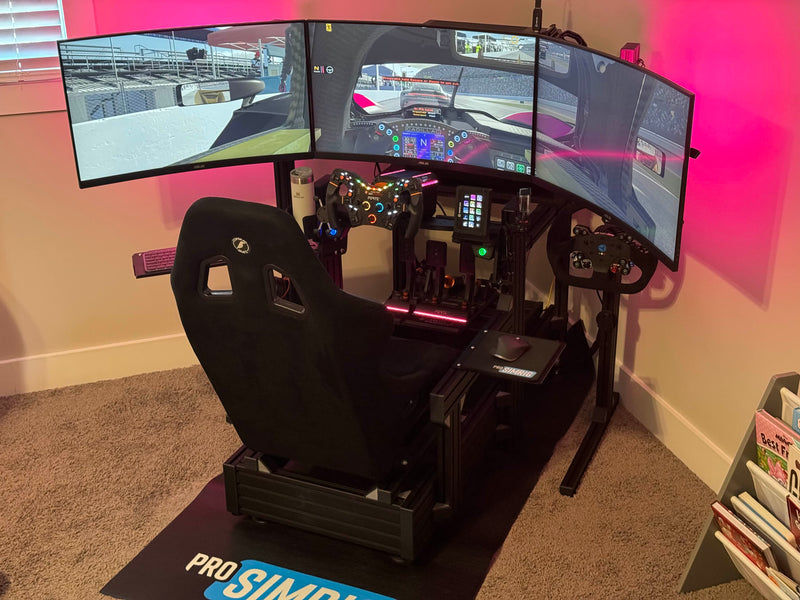

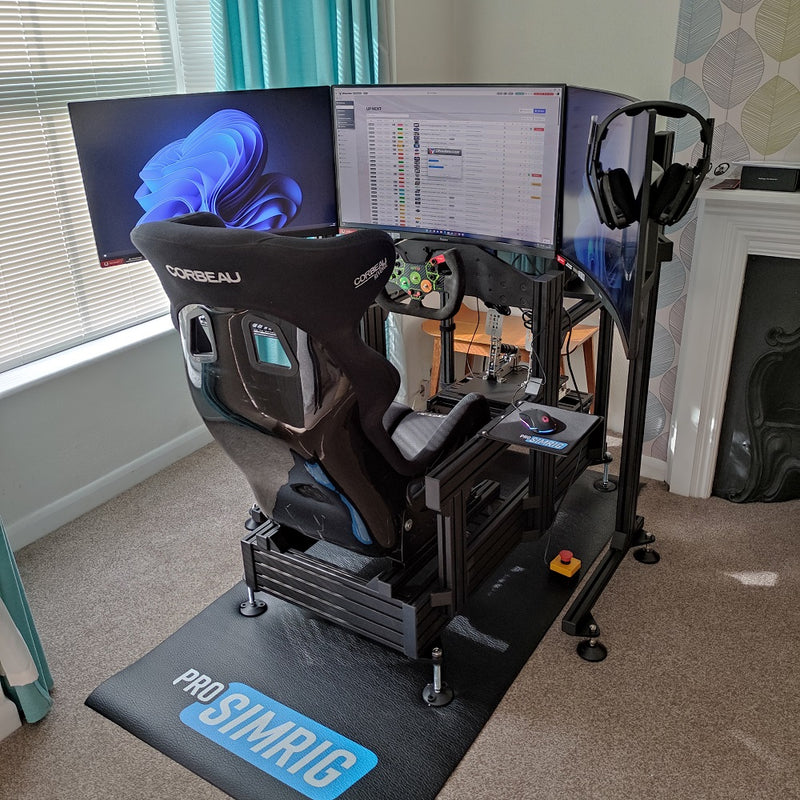

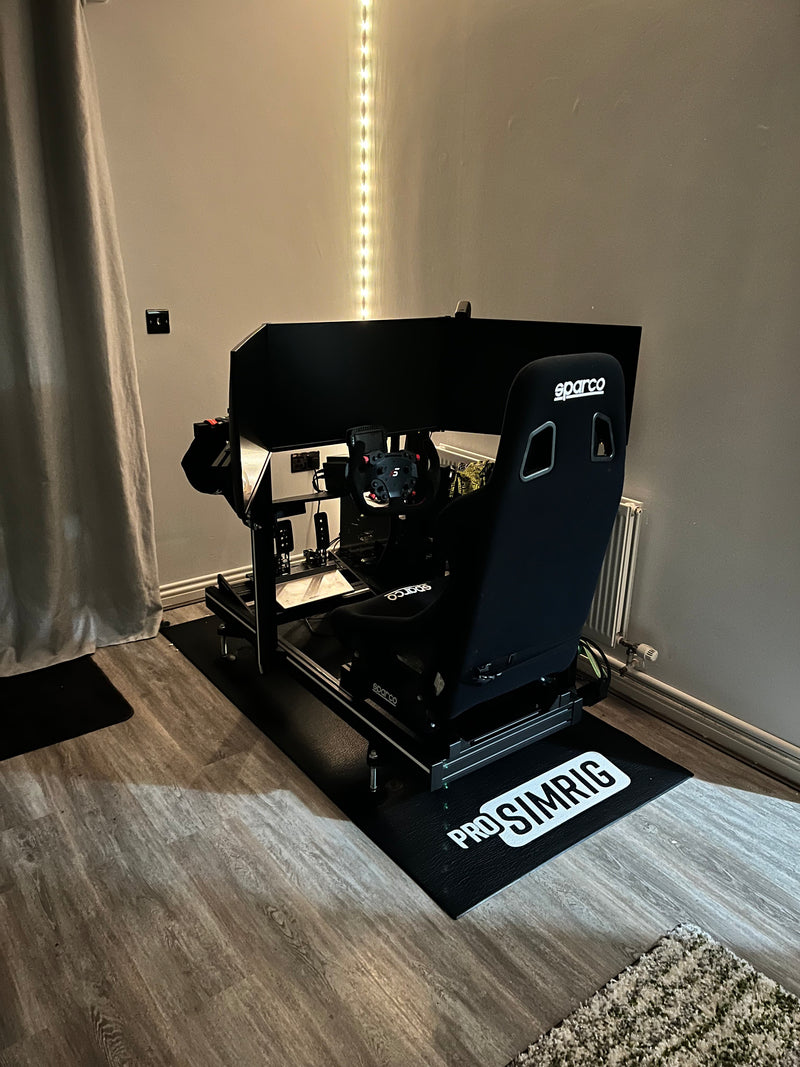

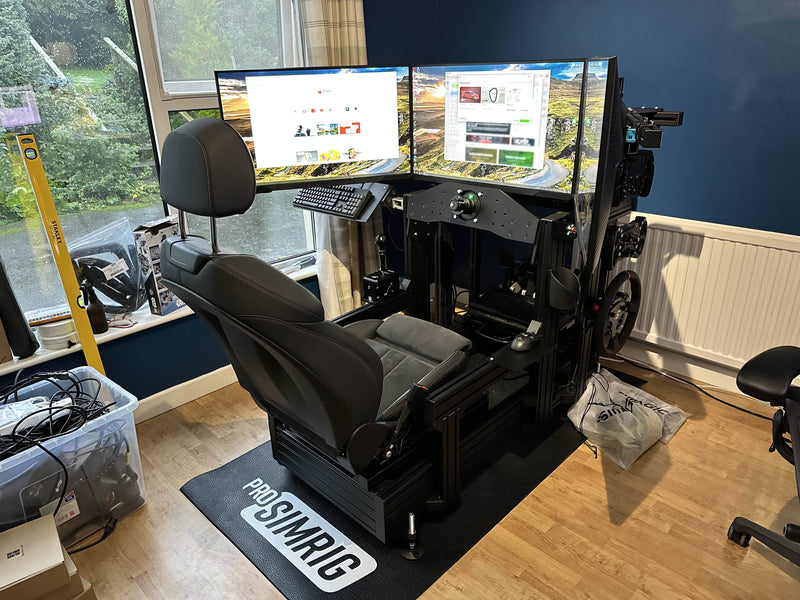

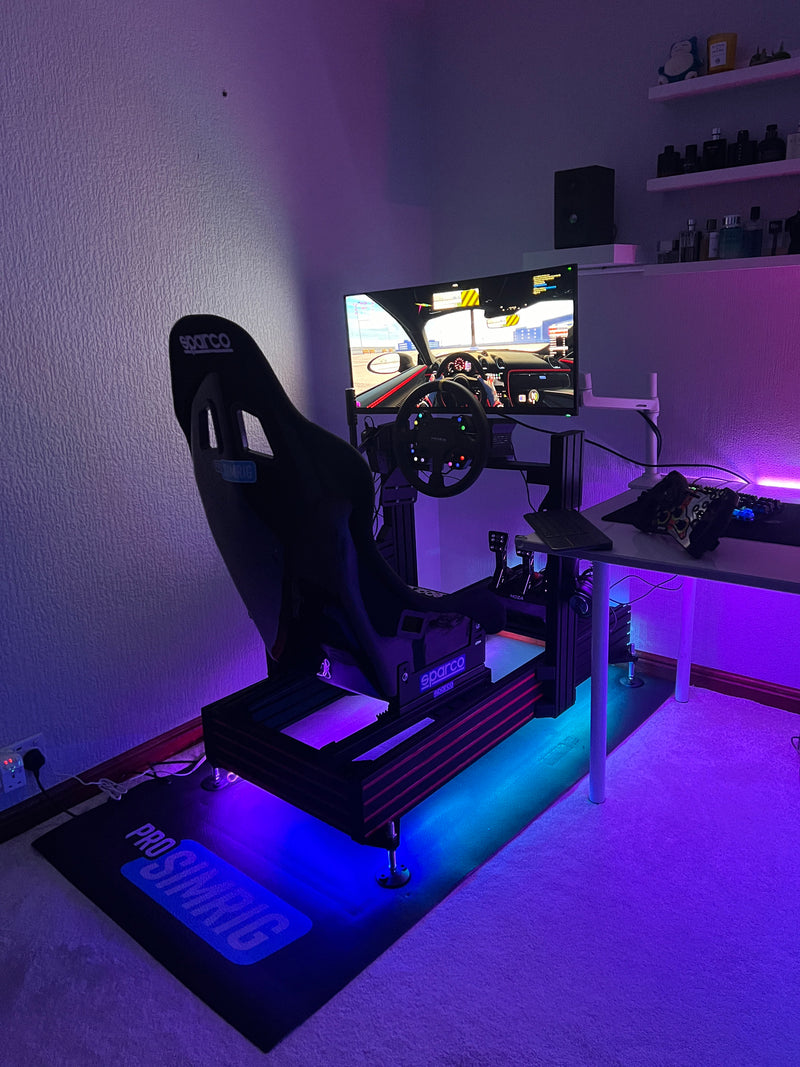

PRO SIMRIG IN THE WILD
